T1L Adapters for Building and Industrial Automation

T1L Technology Overview

T1L Ethernet uses single pair copper wires for data transmission versus traditional Ethernet which requires up to four pairs. 10BASE-T1L or IEEE 802.3cg, commonly referred to as T1L single pair Ethernet (SPE) is ideal for all types of building automation and industrial applications where IIoT edge devices may be located at longer distances from their control points.

T1L Ethernet eliminates cabling complexity and cost by leveraging existing infrastructure and eliminating repeaters, enabling enhanced data transmission and power distribution to support virtually any type or number of edge devices across myriad types of system management and control platforms.

T1L Benefits include:

Single-Pair Power and Data Connection
Extends Network Range up to 1000m+ without Repeaters
Seamless IIoT Integration
Industry Standard Protocol

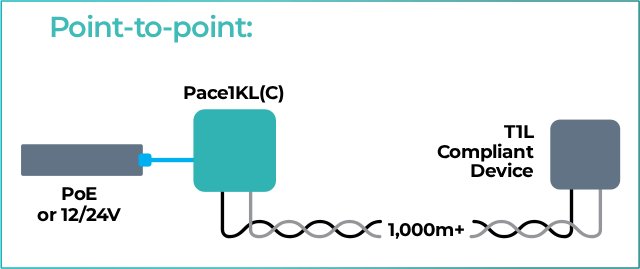

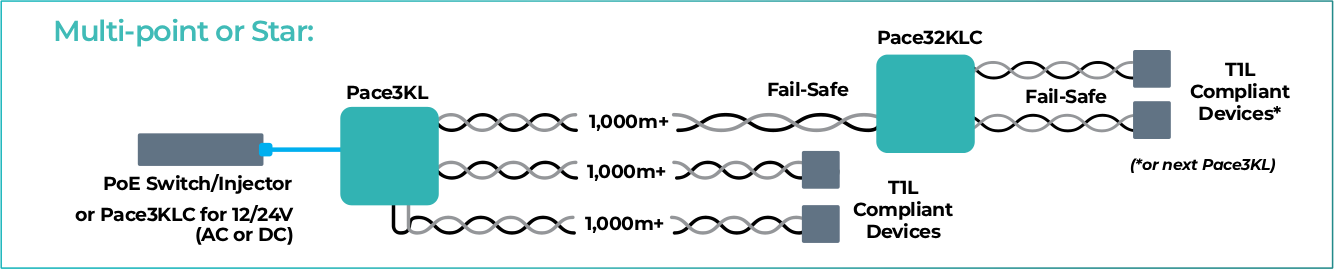

Altronix Pace Supports Single, Daisy-chain, Star, and Dropoff Configurations

Building Management

Building Management

Building Management

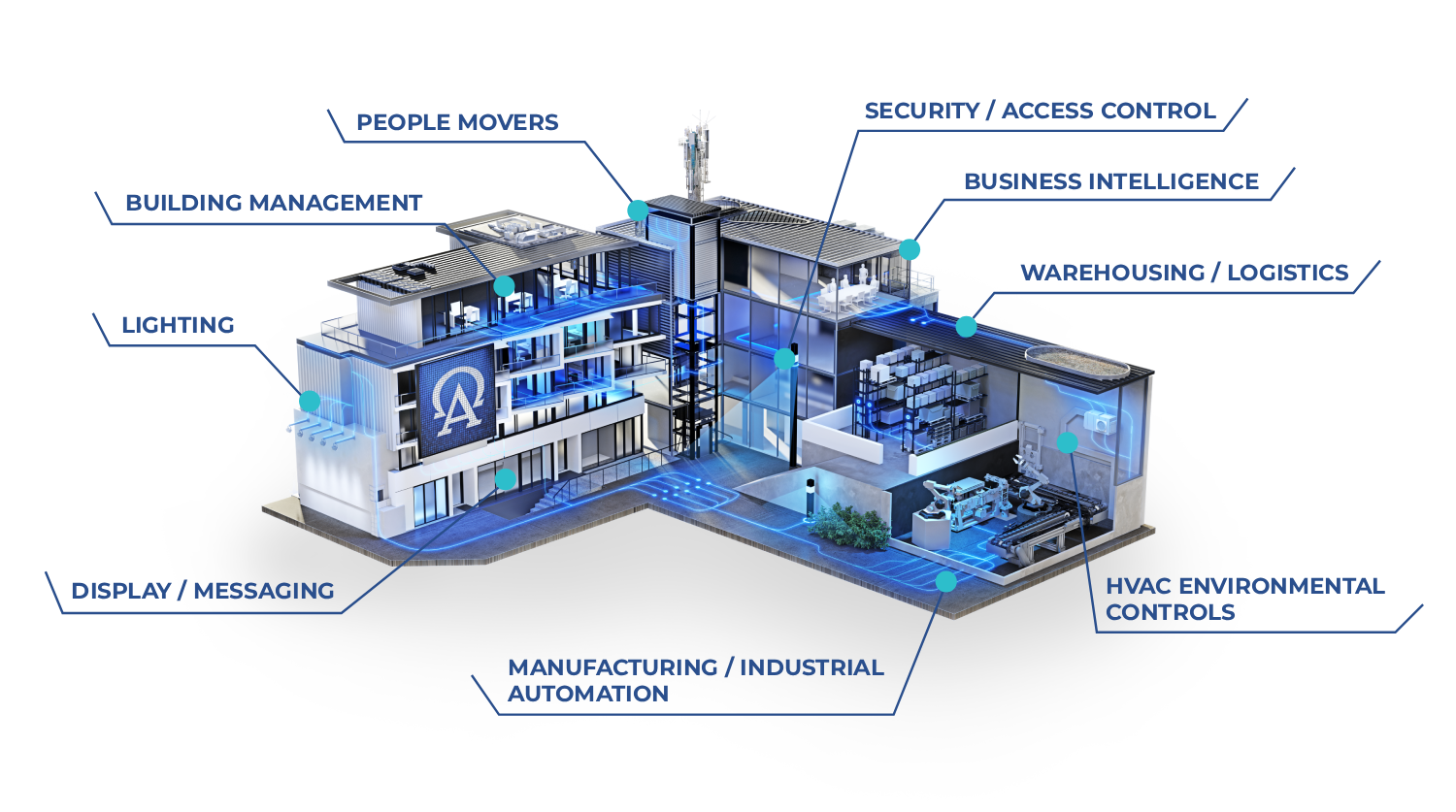

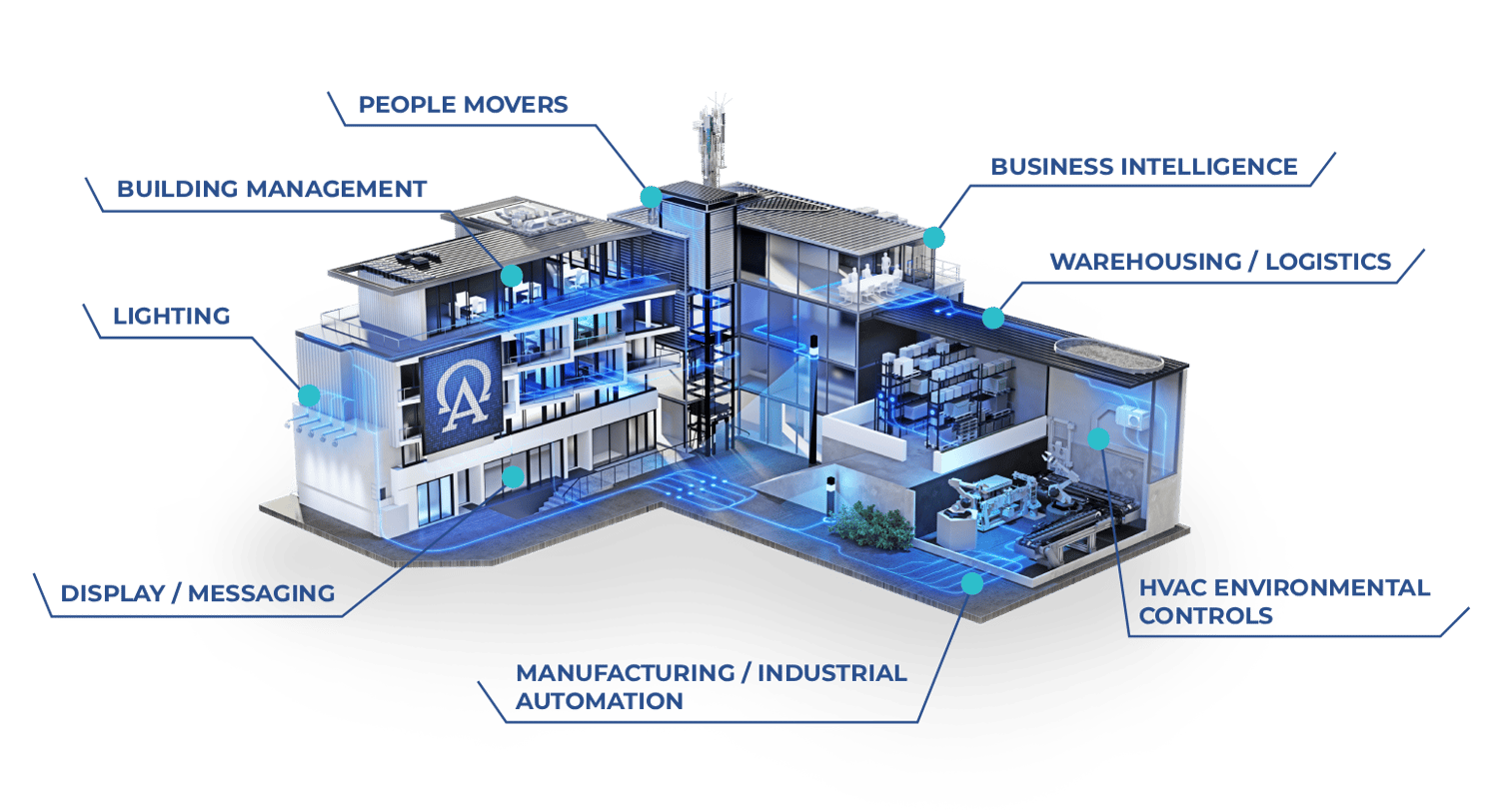

Typical T1L applications include:

Building automation systems
Smart utility meters
Occupancy monitoring
Environmental monitoring
Remote input/output devices

Display Messaging

Display / Messaging

Display / Messaging

Typical T1L applications include:

Digital signage
Wayfinding displays
LED message boards
Public address systems
Emergency notification systems

Warehousing Logistics

Warehousing / Logistics

Warehousing / Logistics

Typical T1L applications include:

Barcode scanners
Radio frequency identification (RFID) systems
Conveyor controls
Dock door systems
Asset tracking

Manufacturing and Industrial Automation

Manufacturing / Industrial Automation

Manufacturing / Industrial Automation

Typical T1L applications include:

Programmable logic controllers
Process sensors
Motor controls
Industrial actuators
Machine monitoring

Lighting

Lighting

Typical T1L applications include:

Office lighting
Parking lot lighting
Warehouse lighting
Pathway lighting
Emergency lighting

Security and Safety

Security / Access Control

Security / Access Control

Typical T1L applications include:

IP surveillance cameras
Access control systems
Fire alarm systems
Intrusion detection systems
Emergency communications

HVAC/Environmental Controls

HVAC Environmental Controls

HVAC Environmental Controls

Typical T1L applications include:

Thermostats
Air quality monitoring
Temperature monitoring
Humidity monitoring
Ventilation controls

People Movers

People Movers

Typical T1L applications include:

Elevators
Elevator intercoms
Emergency phones
Escalators
Moving walkways

Business Intelligence

Business Intelligence

Business Intelligence

Typical T1L applications include:

Energy monitoring
Occupancy analytics
Asset tracking
Environmental analytics
Operational dashboards

Leverage existing infrastructure: T1L can utilize existing single-pair cabling to transmit power and data over a single cable, eliminating the need to rip and re-place installed cabling, and significantly reducing installation costs and complexity

Long-distance connectivity: T1L extends Ethernet networks up to 1km/ 1,000m to connect edge devices across large facilities or located in remote areas

Point to Point or multi-point IIoT integration: Each edge devices can have a unique IP address, allowing for seamless integration with IT infrastructure, remote monitoring and management

Enhanced bandwidth: T1L supports high bandwidth edge devices, enabling the deployment of more advanced data collection edge devices, better system management and control, operational versatility and efficiency, and advanced analytics

Supports safe environments: T1L low voltage infrastructure is ideally suited for use in hazardous areas such as refineries, utility rooms and other areas that may house combustible material

Altronix Pace Product Portfolio

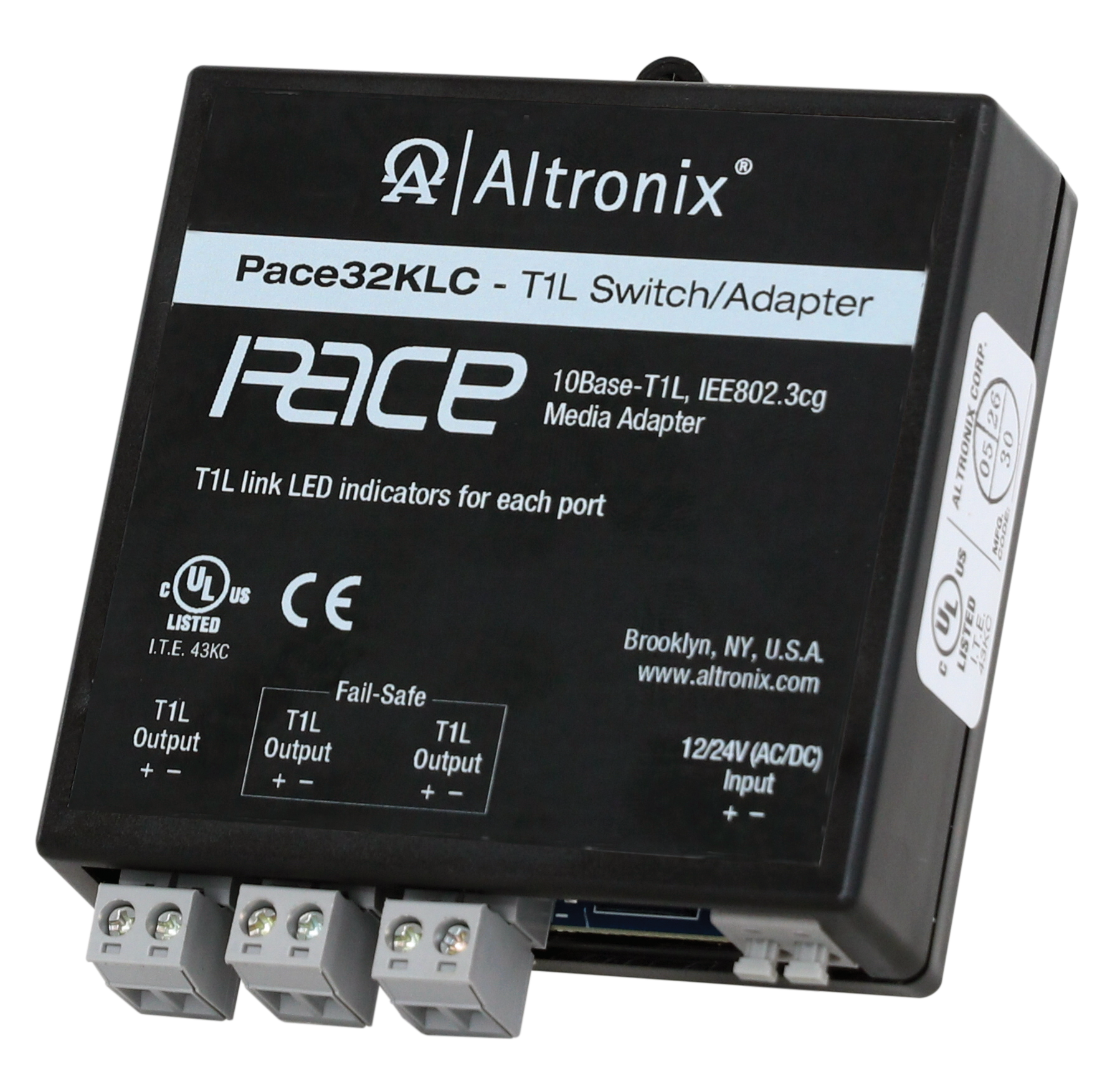

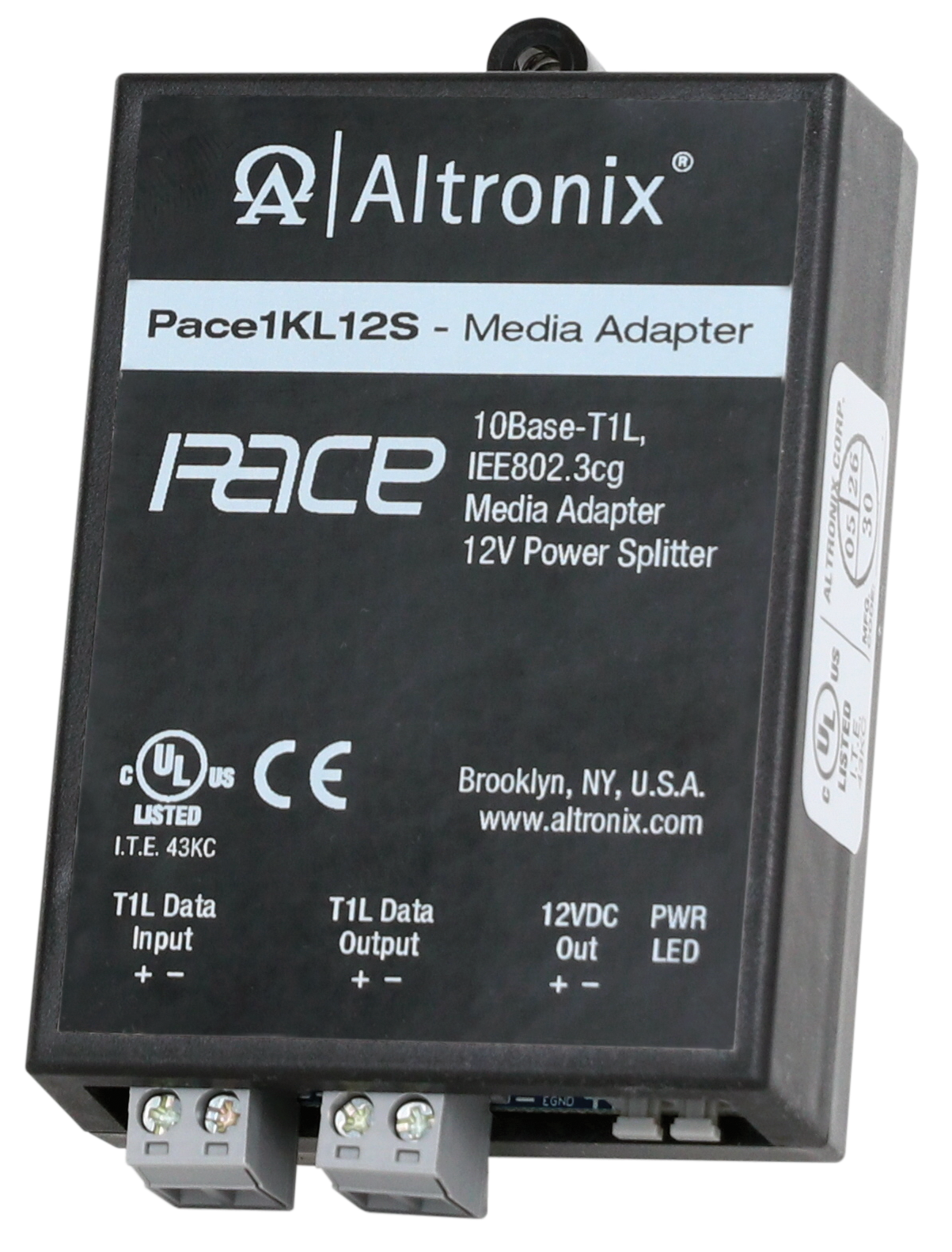

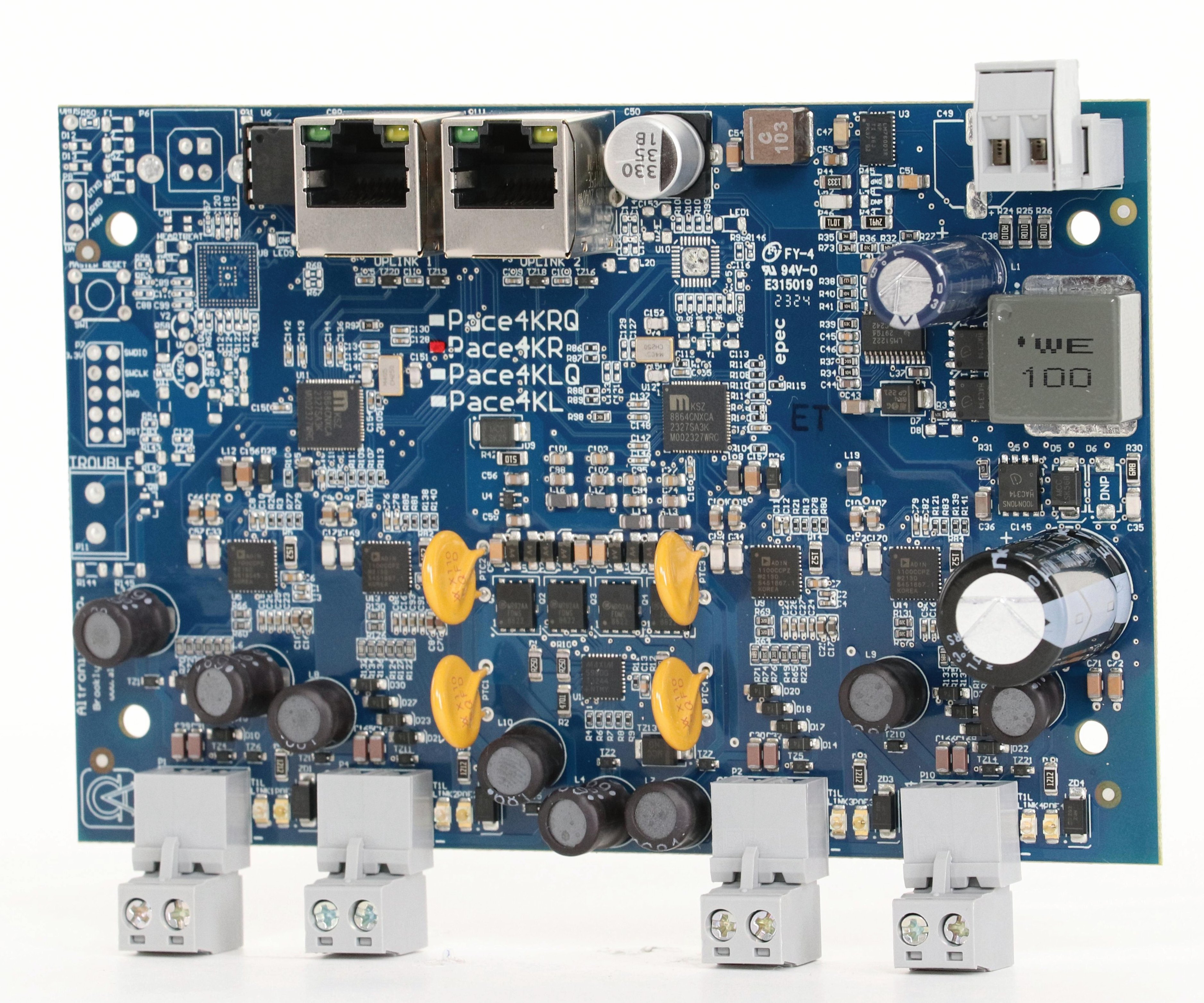

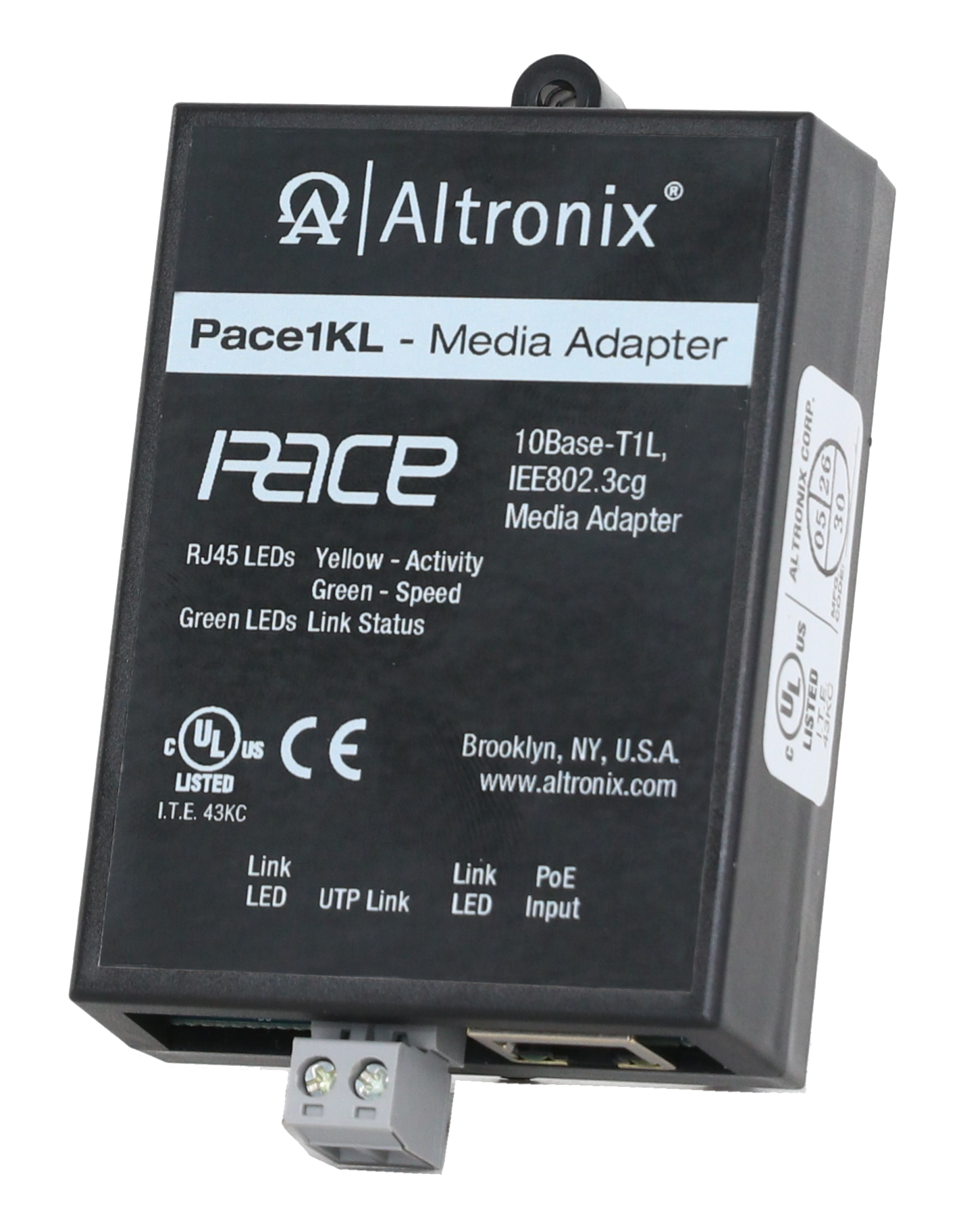

Altronix Pace SPE (Single Pair Ethernet) T1L media converter/adapters enable connection of 10Base-T1L, IEE802.3cg compliant Industrial IoT devices to an Ethernet network. Long distance headend to remote-end device cabling can be achieved to over 1km/ 1,000m /3,280’.

In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved using the existing two wire cabling, thus saving rip and replace reinstallation costs.
