T1L Technology Overview

T1L Ethernet uses single pair copper wires for data transmission versus traditional Ethernet which requires up to four pairs. 10BASE-T1L or IEEE 802.3cg, commonly referred to as T1L single pair Ethernet (SPE) is ideal for all types of building automation and industrial applications where IIoT edge devices may be located at longer distances from their control points.

T1L Ethernet eliminates cabling complexity and cost by leveraging existing infrastructure and eliminating repeaters, enabling enhanced data transmission and power distribution to support virtually any type or number of edge devices across myriad types of system management and control platforms.

T1L Benefits include:

  • Single-Pair Power and Data Connection
  • Extends Network Range up to 1000m+ without Repeaters
  • Seamless IIoT Integration
  • Industry Standard Protocol
  • Altronix PaceTM Supports Single, Daisy-chain, Star, and Dropoff Configurations

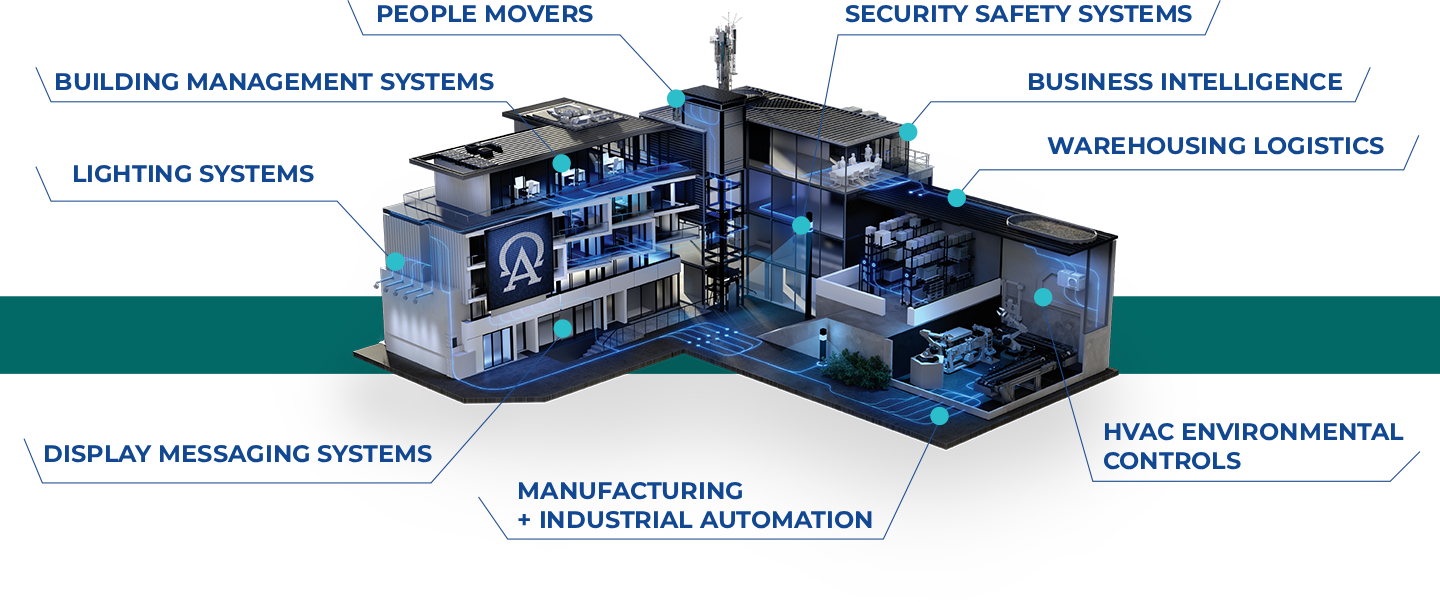

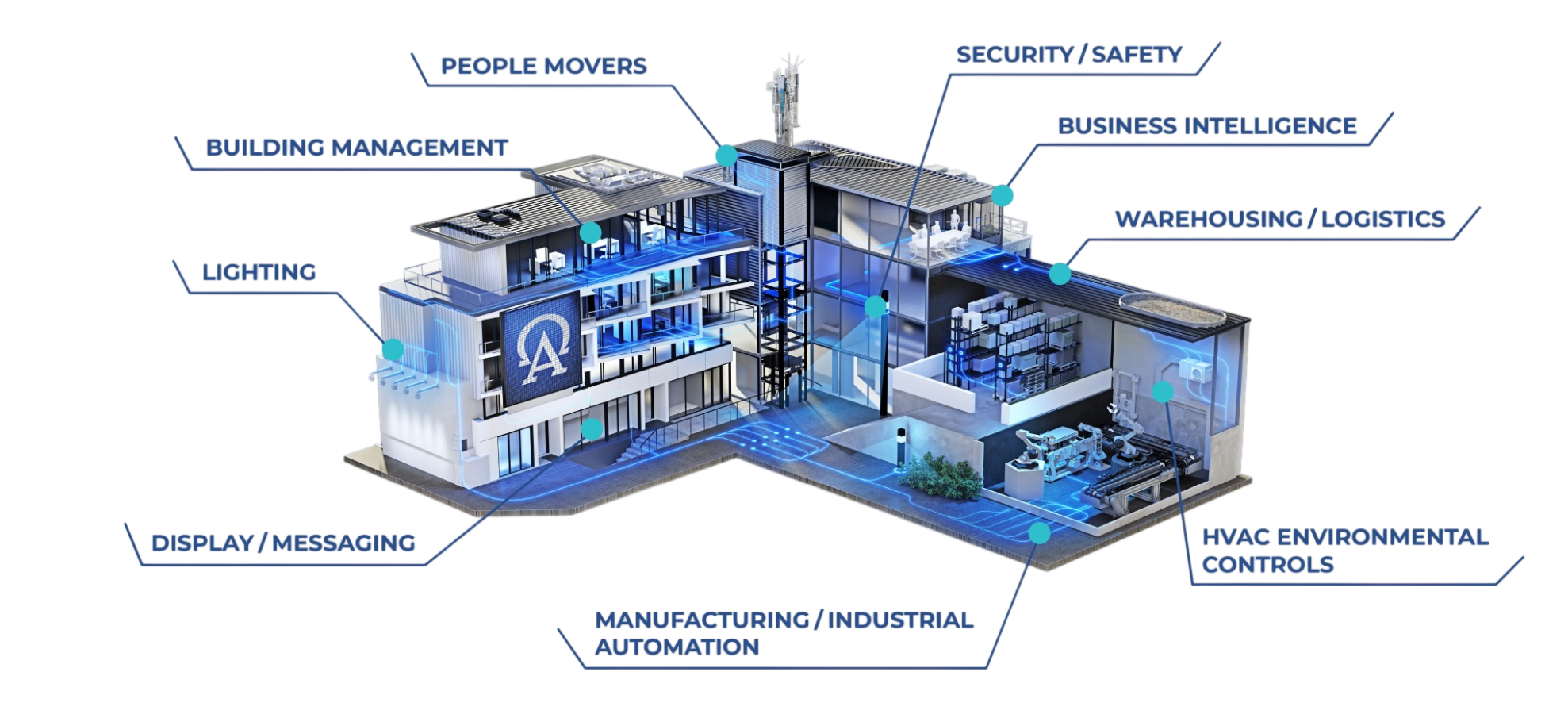

T1L Network Applications

wave



Building Management

Building Management

Building Management

Integrating building management and control systems using existing infrastructure centralizes management and increases operational efficiencies and energy optimization across the enterprise.

Display Messaging

Display / Messaging

Display / Messaging

Video displays are increasingly being used across exterior and interior locations for a wide range of applications including brand messaging, location services, safety and security.

Warehousing Logistics

Warehousing / Logistics

Warehousing / Logistics

Shipping and receiving operations can integrate warehouse and inventory management, order/process management, asset tracking and transportation systems with distributed architecture.

Manufacturing and Industrial Automation

Manufacturing / Industrial Automation

Manufacturing / Industrial Automation

Connecting sensors, actuators, and controllers in factories and process automation environments can greatly enhance production management and productivity over expansive spaces.

Lighting

Lighting

Lighting

New networked LED lighting systems, enabling automation, scheduling, and integration with related building systems enrich environments and reduce energy consumption.

Security and Safety

Security / Safety

Security / Safety

Ideal for integrated IP surveillance cameras, access control, fire and safety, and intrusion detection systems employing advanced analytics and management platforms all connected over long distances to centralized security operation centers (SOCs).

HVAC/Environmental Controls

HVAC Environmental Controls

HVAC Environmental Controls

Centralized control of environmental systems ensures that specific conditions are maintained to support specific environments - from general office areas to clean rooms and data centers.

People Movers

People Movers

People Movers

Systems that keep people and assets moving throughout a facility are mission critical, impacting productivity, safety and security, and occupants' user experience with an organization.

Business Intelligence

Business Intelligence

Business Intelligence

Enterprise Resource Planning (ERP) solutions can integrate some or all of an organization's systems to collect myriad sources of data from previously disparate systems, providing new insights for analysis and planning.

The Altronix Solution

PACETM Single Pair Ethernet media converters by Altronix provide many benefits when deploying building automation.

T1L Ethernet connectivity provides an effective cost-efficient solution that facilitates high-speed IP networks using existing single pair wiring available in most buildings.

PaceT1L Icon 01_light

Lower Costs

PaceT1L Icon 02_light

Provides Seamless IIoT Integration

PaceT1l Icon 03_light

Enhances Safety and Security

Pace T1L Icon 04_light

Extends Distance

PaceT1L Icon 05_light

Increases ROI

PaceT1L Icon 06_light

Reduced Carbon Footprint

Why You Should Specify Altronix PACETM Single Pair Ethernet Solutions:

Leverage existing infrastructure: T1L can utilize existing single-pair cabling to transmit power and data over a single cable, eliminating the need to rip and re-place installed cabling, and significantly reducing installation costs and complexity

Long-distance connectivity: T1L extends Ethernet networks up to 1km/ 1,000m to connect edge devices across large facilities or located in remote areas

Point to Point or multi-point IIoT integration: Each edge devices can have a unique IP address, allowing for seamless integration with IT infrastructure, remote monitoring and management

Enhanced bandwidth: T1L supports high bandwidth edge devices, enabling the deployment of more advanced data collection edge devices, better system management and control, operational versatility and efficiency, and advanced analytics

Supports safe environments: T1L low voltage infrastructure is ideally suited for use in hazardous areas such as refineries, utility rooms and other areas that may house combustible material

Altronix PACE Product Portfolio

Altronix PACE SPE (Single Pair Ethernet) T1L media converter/adapters enable connection of 10Base-T1L, IEE802.3cg compliant Industrial IoT devices to an Ethernet network. Long distance headend to remote-end device cabling can be achieved to over 1km/ 1,000m /3,280’.

In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved using the existing two wire cabling, thus saving rip and replace reinstallation costs.

Key Features:

  • Provides Ethernet over 2-wire (UTP or shielded), 16/2 AWG or higher wire up to 1km/ 1,000m at 10Mbps
  • Utilize 2-wire on existing or new installations
  • 10Base-T1L, IEE802.3cg protocol with 10Mbps
  • Provides 12VDC/24VDC to power compatible devices
  • Versatile input options (12VDC, 24V AC/DC or PoE)
  • Allows for single/multi-point or star connectivity
  • Fail-safe reliability
  • Network Power management options to control, monitor and report power diagnostics remotely
  • NDAA, TAA Compliant
  • CE, UL Listed (US & Canada)
  • Backed by a Lifetime Warranty
graph1

Altronix Plug & Play 2-Wire / SPE Solutions:

Pace1KL
Pace1KL12S
Pace3KL
Pace4KL

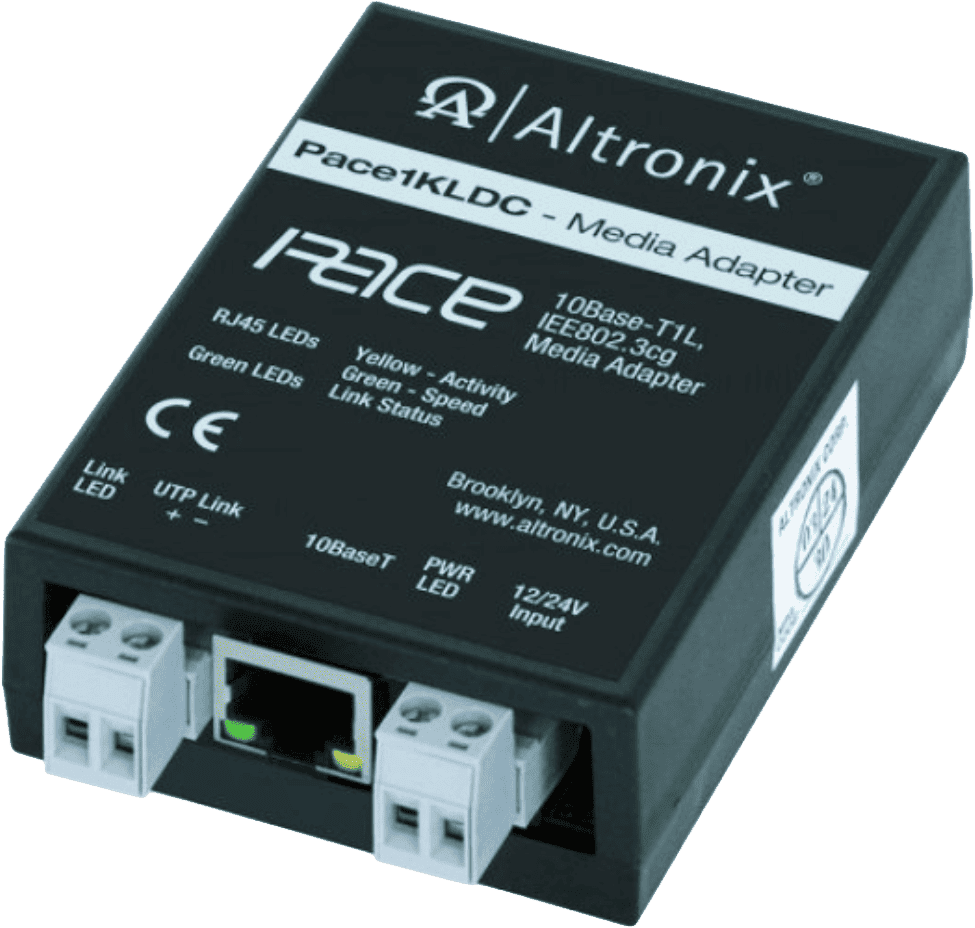

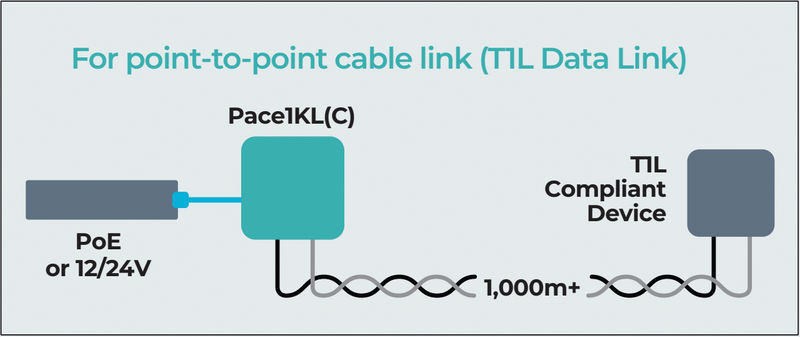

Pace1KL / Pace1KLDC - Single Port Adapter

Point-to-point (T1L data link)

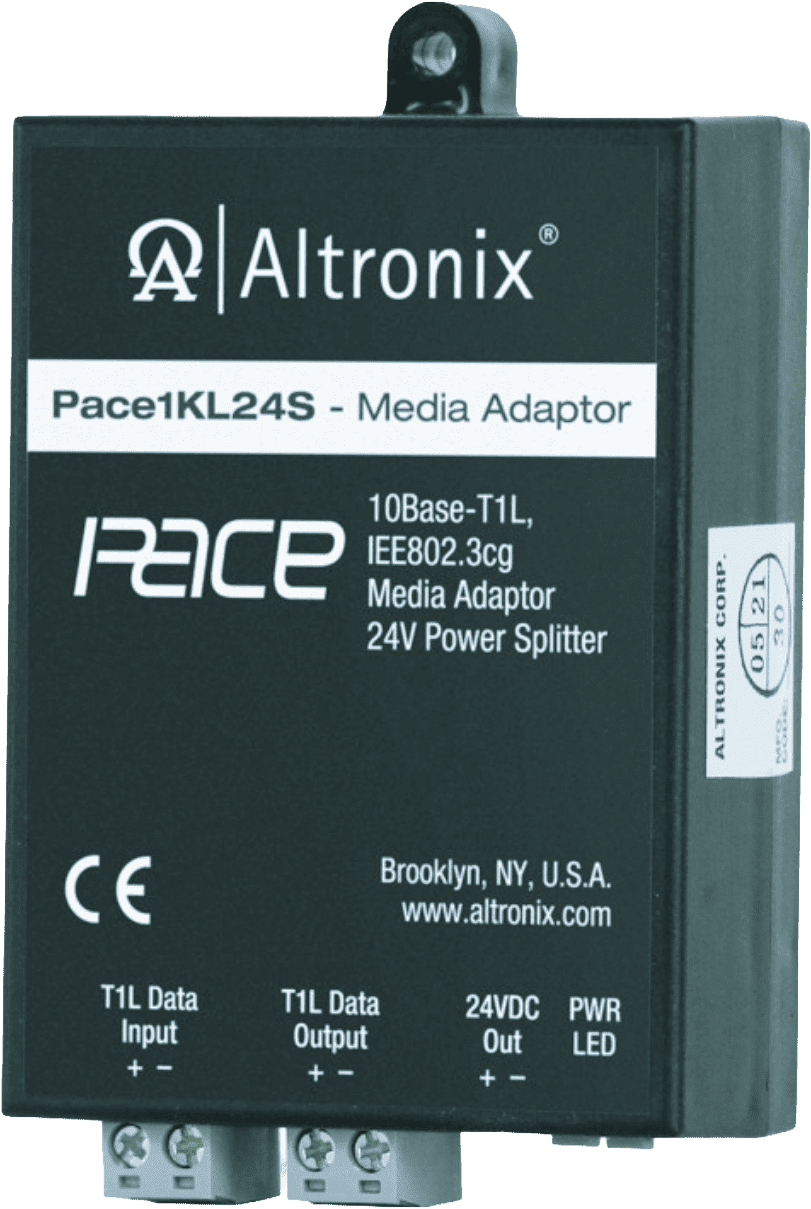

Pace1KL12S / Pace1KL24S – Single Port Adapter with 12V/24V Power

Point-to-point (T1L data & split power link)

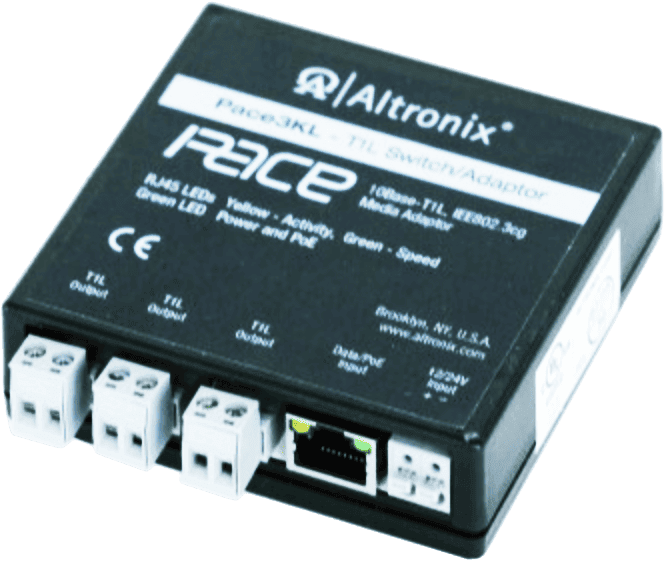

Pace3KL / Pace3KLCPace32KLC – Three-Port Adapter

Point-to-multi-point or star connection

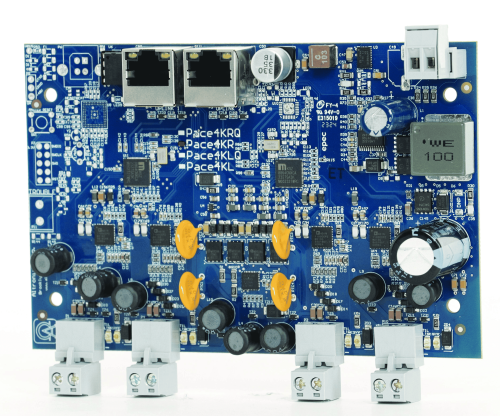

Pace4KL(Q) - Four Port Adapter / Switch

Multi-point-to-multi-point cable link (PoE+ and data link)
